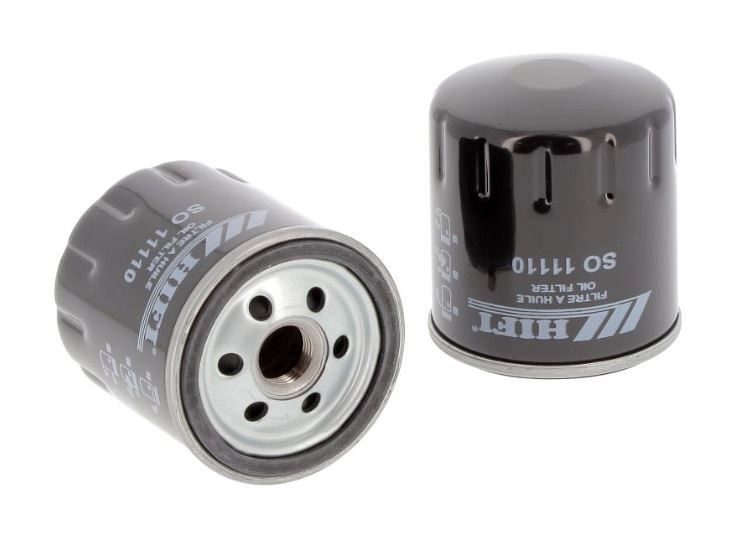

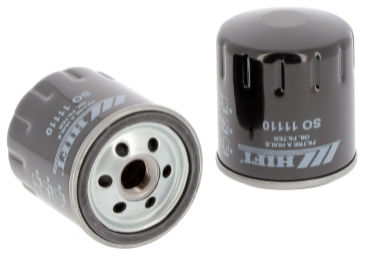

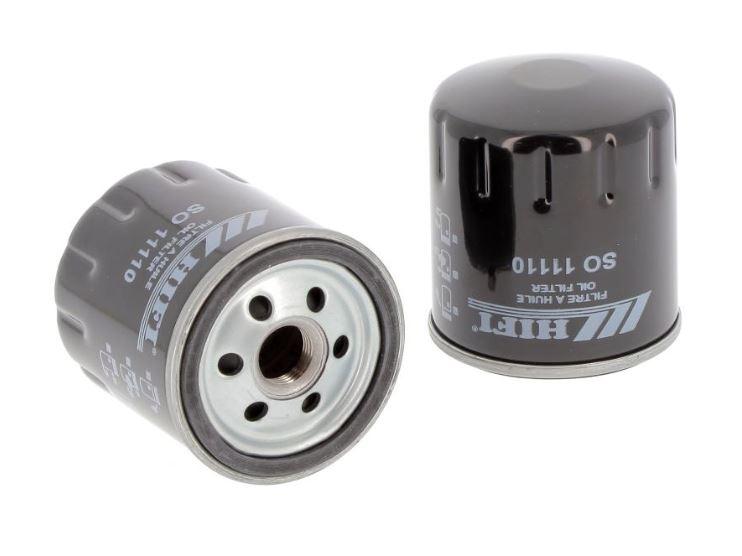

Oil filter

Part No. 131477 | SO 11110

86x78mm - (3/4-16 UNF)

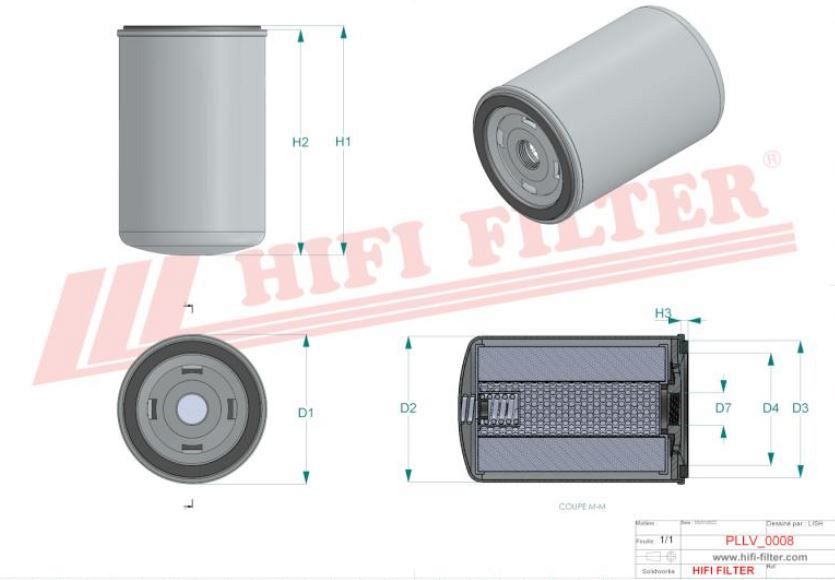

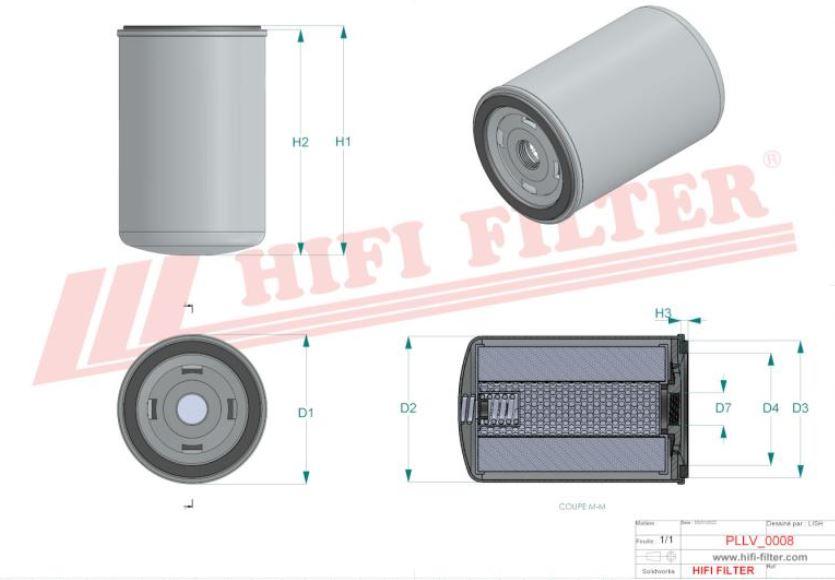

Filter Description	Oil Filter Spin-On
Height H1	86
Height H2	83
Outside D1	78
Outside D2	76
Thread	¾” - 16 UNF-2B
Gasket ID	72
By-pass-value	1

ATLAS COPCO - QLTH40.

BOMAG - BF222, BF223, MF221.

CATERPILLAR - 216, 226, 228, 232, 236, 239, 242, 246, 247, 248, 249, 252, 257, 262, 267, 277, 287, 301, 302, AP255, C1.1, C1.5, C1.6, C1.7, C2.2, CB14, CB214, CB22, CB24, CB2.5, CB2.6, CB2.7, CB32, CB334, CB335, CB34, CB36, CBR2.5, CBR2.6, CBR2.7, CC24, CC2.6, CC2.7, CC34, GEP22-4.

DYNAPAC - CC1000, CC800, CC900.

JCB - 1CX, 354, 48Z, 50Z, 51R, 520-40, 55Z, 65R, 8010, 8014, 8016, 8018, 8020, 8025, 8026, 8030, 8032, 8035, 8040, 8045, 8050, 8055, CC155, JS65, Robot 135, 170, 180, Teletruk TLT25D, TLT30D, TLT35D.

MANITOU - 150TP.

TEREX - PT30, PT60

VOLVO - MC60, MC70, MC95.

WACKER NEUSON - DW40, ET42, ET65, EW65, EZ50, EZ53, EZ80, TH522, WL18, WL20, WL25, WL28, WL30, WL34, WL38, WL44.

YUCHAI - YC15-8, YC18-2.
