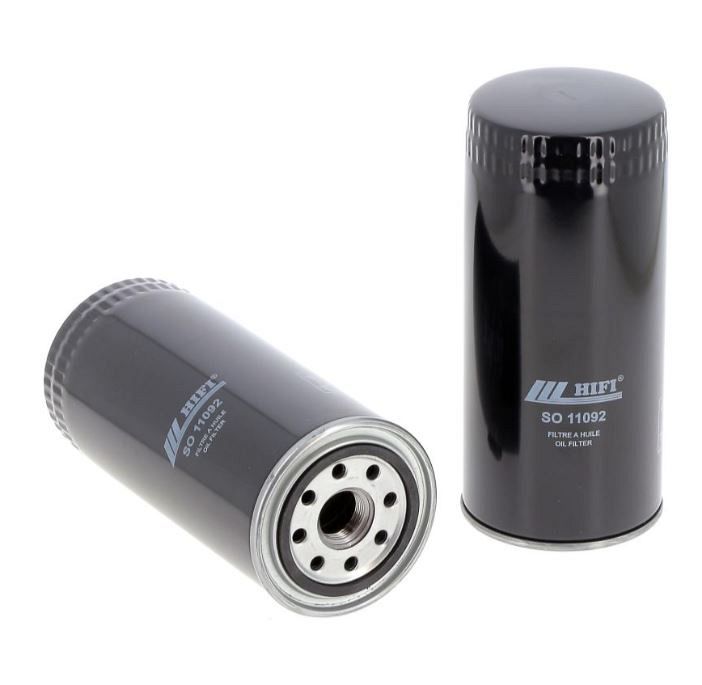

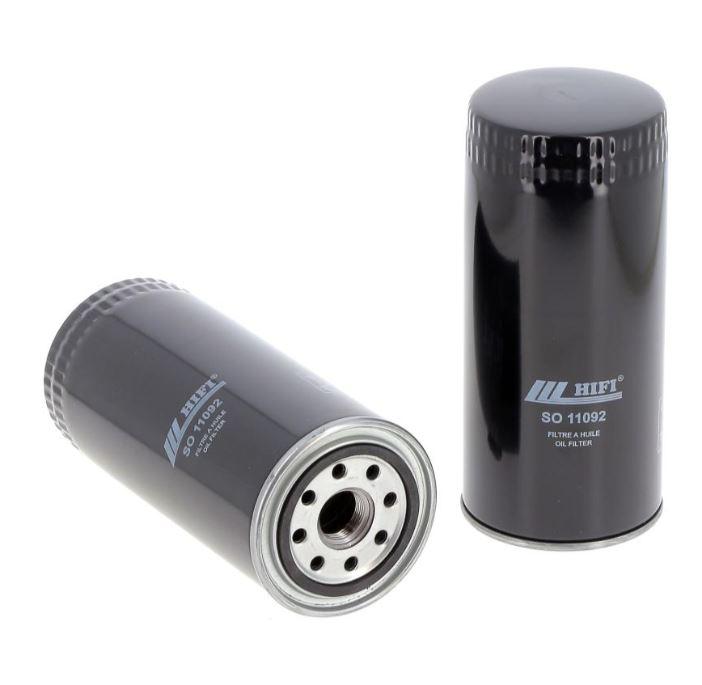

Oil filter

Part No. 134102 | SO 11092

210x96mm - (M24x1.5)

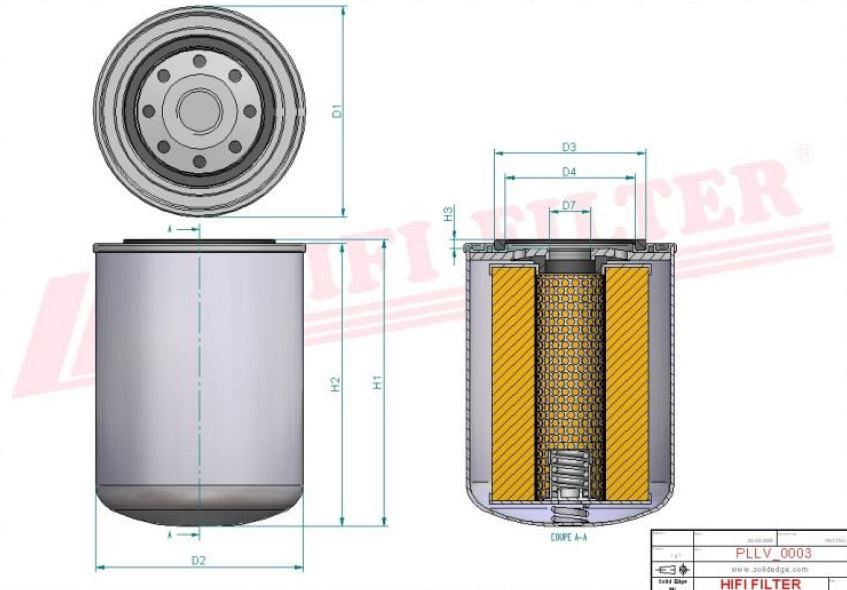

Filter Description	Oil Filter Spin-on
Height H1	210
Height H2	208
Outside D1	96
Outside D2	94
Gasket OD D3	71
Thread Size D7	M24x1.5
By-pass Valve	1
Check Valve	1

ATLAS COPCO - ROC D7-11, XAHS236, XAHS237, XMAS286, XMAS287, XMAS407, XAVS237.

CATERPILLAR - 120M, 12M, 428, 525, 535, 545, 555, 924, 926, 928, 930, 938, 950, 953, 962, 963, AP600, AP655, BG600, CS74, CS76, D5, D6K, D6N, DE220, DP100, DP120, DP135, GEP200, M316, M318, M320, M322, MH3022, MH3024, MH3026.

CLAAS - Avero 140, 160, 240, Dominator 130, 140, 150, Lexion 510, 520, 540, 620, 640.

DOOSAN DAEWOO - DL200-5, DL500-7, DX140LC-5, DX160W-5, DX165W-5, DX180LC-5.

HYUNDAI - HX140, HX145, HX160, R125, R145.

MANITOU - MRT3050

MASSEY FERGUSON - 5465, 5475, 6445, 6455, 6465, 6475, 6480, 7465, 7475, 7480.

PERKINS - 1106A, 1204E, 1206E.

SULLAIR - 65K-II

TAMROCK - DX700, DX800 Ranger

VALTRA - 1180, 1580, 585, 685, BM100, BM125, BM85.

WACKER NEUSON - WL70

WILSON - P200
