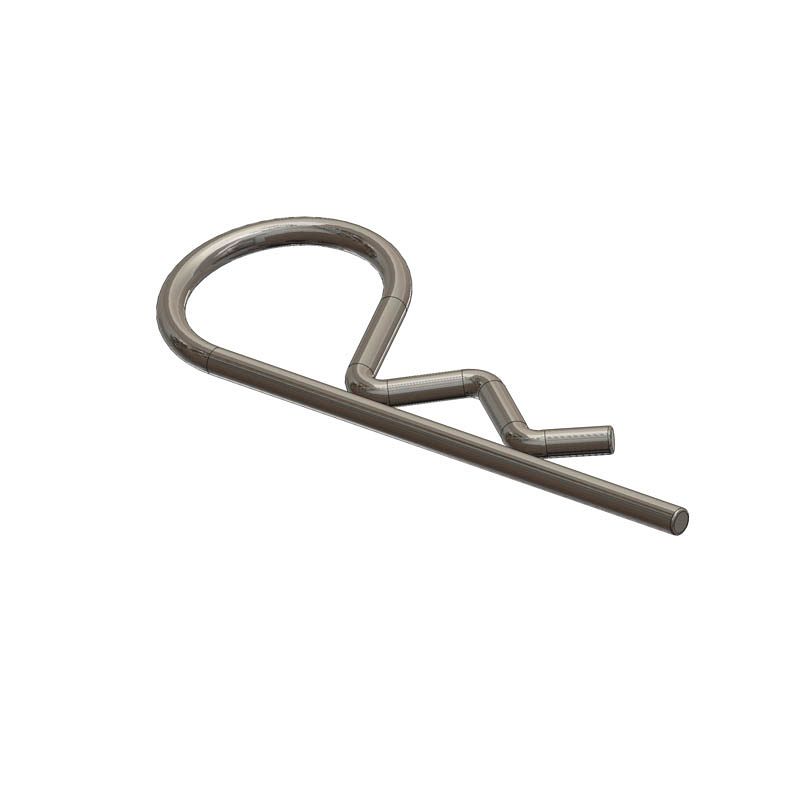

Part No. 113945
Alt Part No's. B10
3x60mm
Material:
Steel
Finish:
ZP

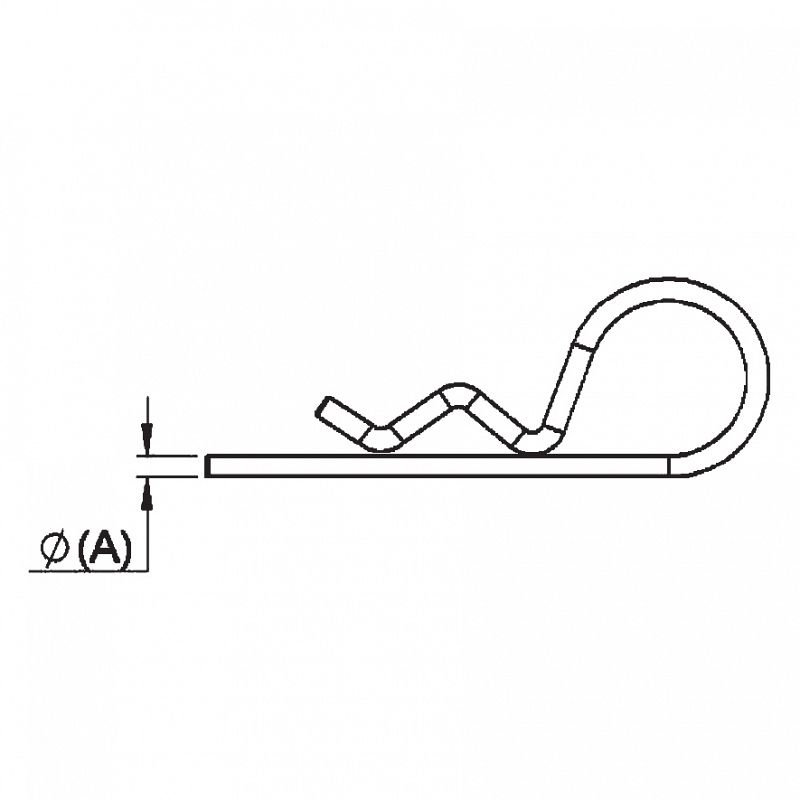

| Product Code | Pin Diameter (A) | Suiting Shaft | Weight | Pin Length |
|---|---|---|---|---|
| B8 (Alt# S8) | 2mm | 6-11mm | 5g | 35mm |
| B9 (Alt# S.9) | 2.5mm | 8-11mm | 8g | 28mm |
| B10 (Alt# S.10) | 3mm | 10-12mm | 10g | 60mm |
| B12 (Alt# S.12) | 4mm | 12-22mm | 20g | 65mm |
| B13 (Alt# S.13) | 5mm | 16-27mm | 30g | 90mm |
| B14 (Alt# S.14) | 6mm | 9-32mm | 60g | 110mm |
