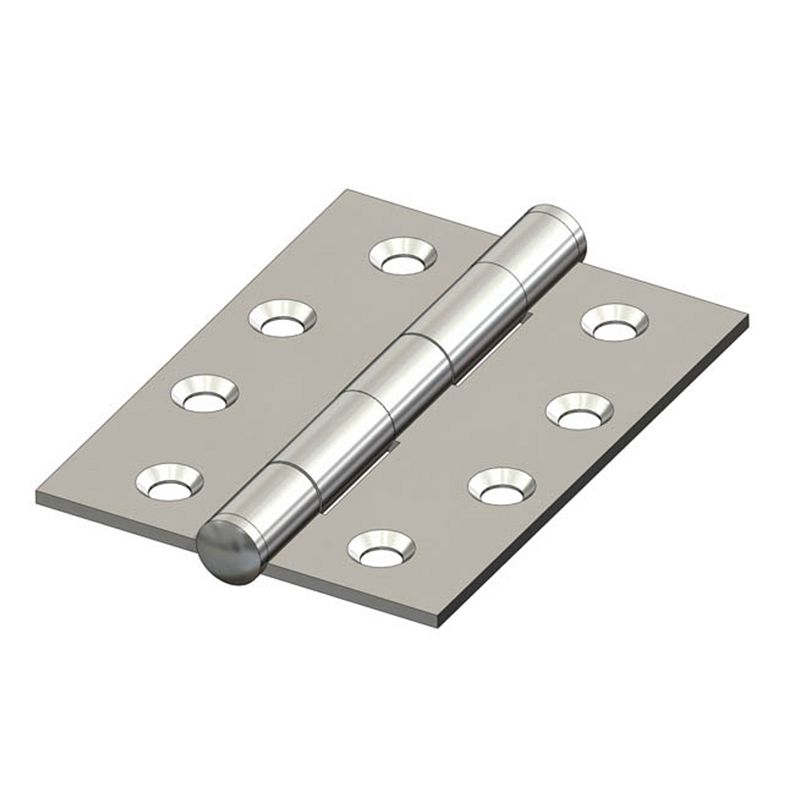

Butt hinge - fitted pin zp
Part No. 114013
Alt Part No's. BH05038x1-2ZP, SBF50BZ
50x38x1.2mm
Material
Zinc Plated

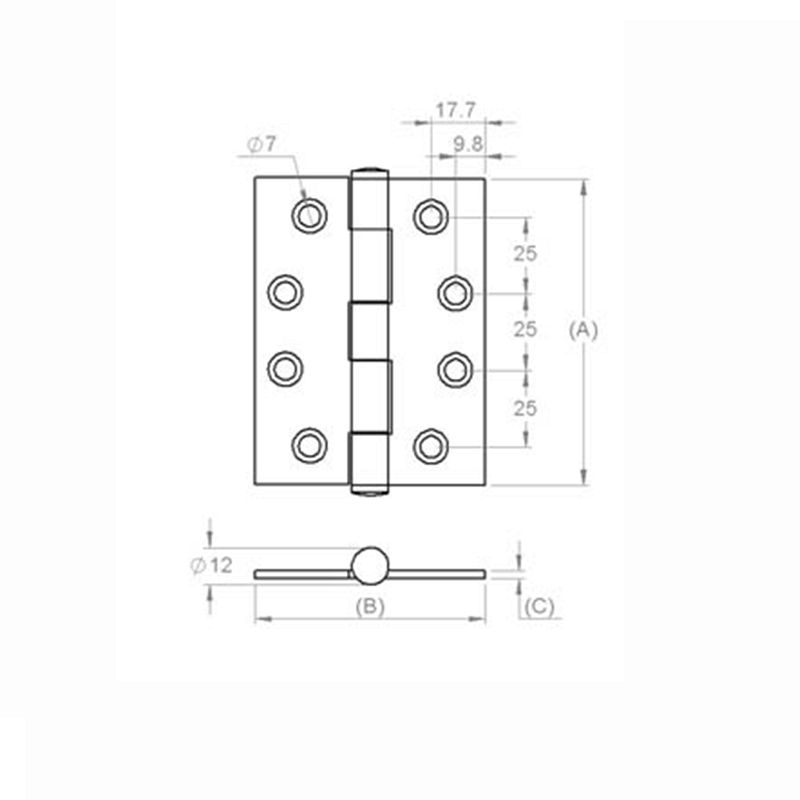

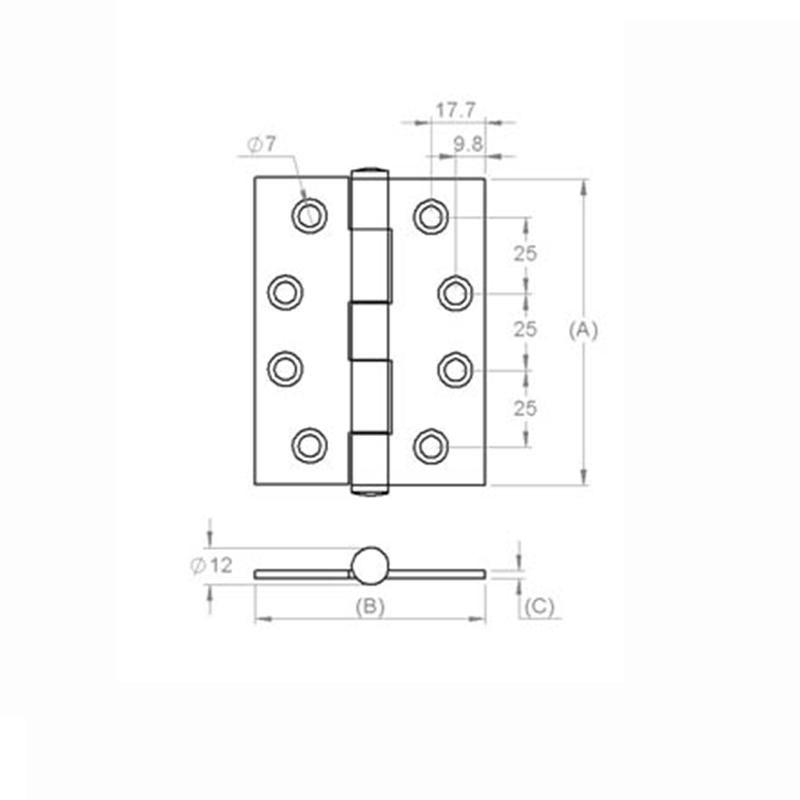

| Zinc Plated | Alt# | Height(A) | Width(B) | Gauge(C) |
|---|
| SBF35BZ |
|
35 |
25 |
1.2mm |
| SBF50BZ |
91925 |
50 |
38 |
1.2mm |
| SBF70BZ |
91935 |
70 |
50 |
1.5mm |
| SBF85BZ |
91945 |
85 |
60 |
1.6mm |
| SBF100BZ |
91955 |
100 |
75 |
1.6mm |
