Part No. 113977
Alt Part No's. 7004.90.100, HGWOBA100, WOHAL-100GN
100mm
Material
Aluminium
Finish
Satin
Features
Stainless Steel Washer
Stainless Steel Pin
Grease Nipple

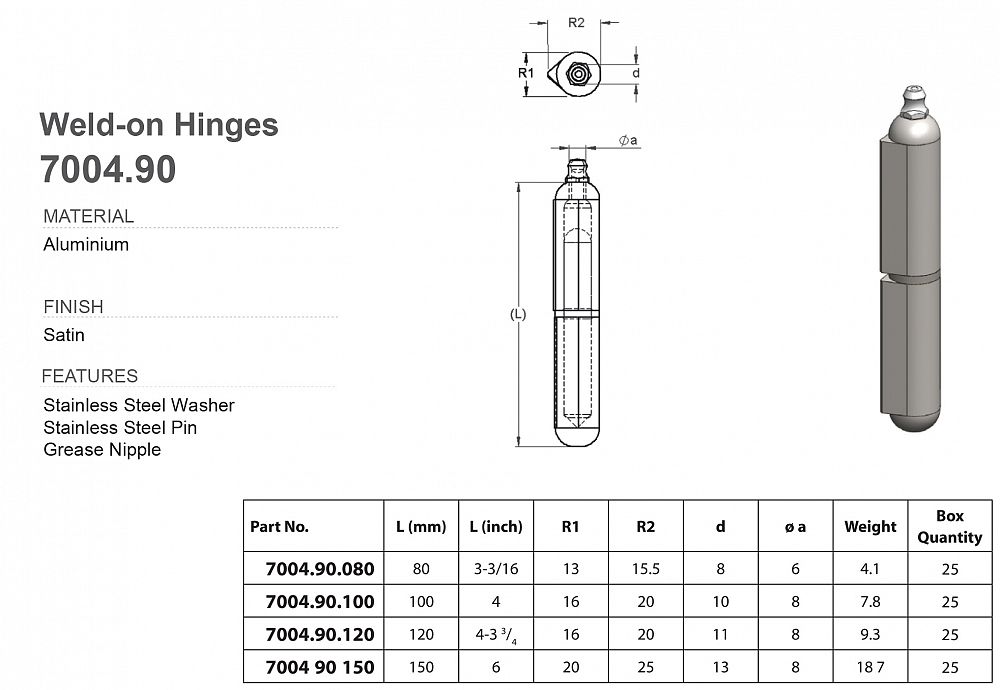

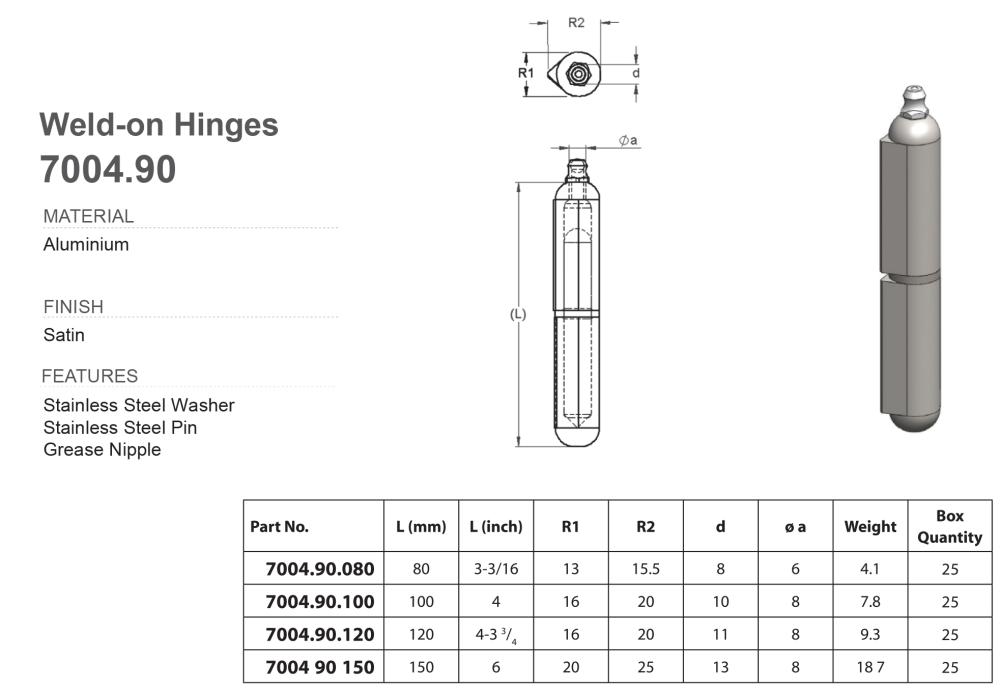

Length = 100mm
R1 = 16mm
R2 = 20mm
d = 10mm
Oa = 8mm
Weight = 7.8g

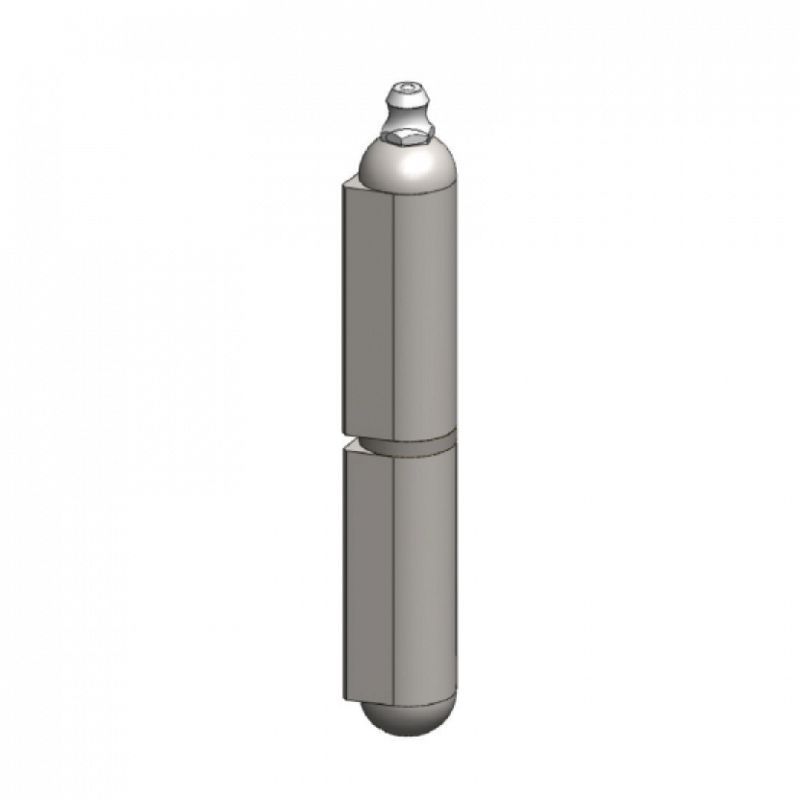

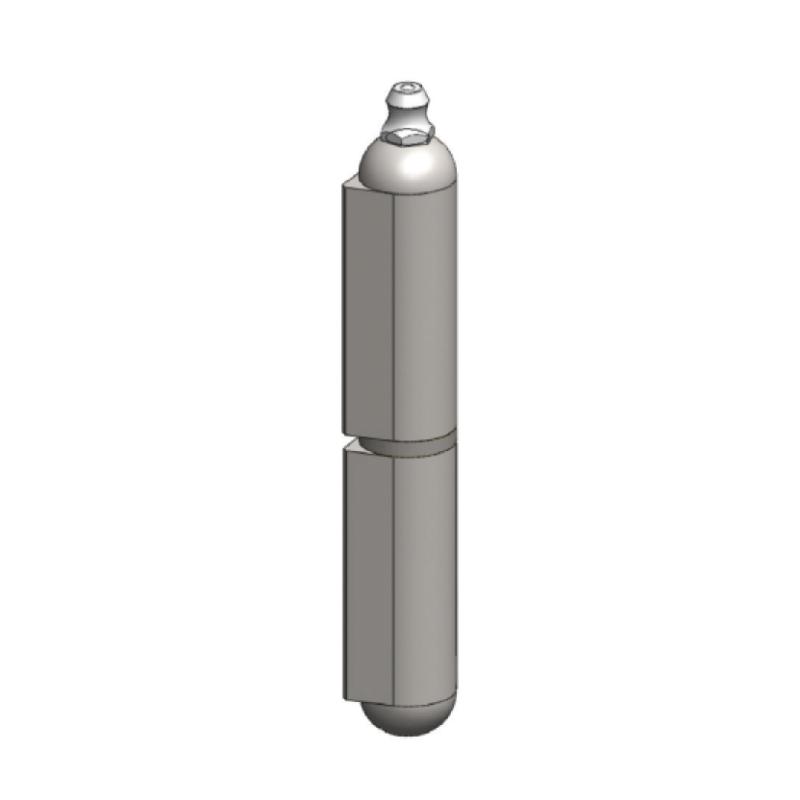

100mm weld on bullet hinge. Alloy hinge with stainless steel pin and nickel plated brass grease nipple. Ideal for alloy toolboxes or for lift off doors.
