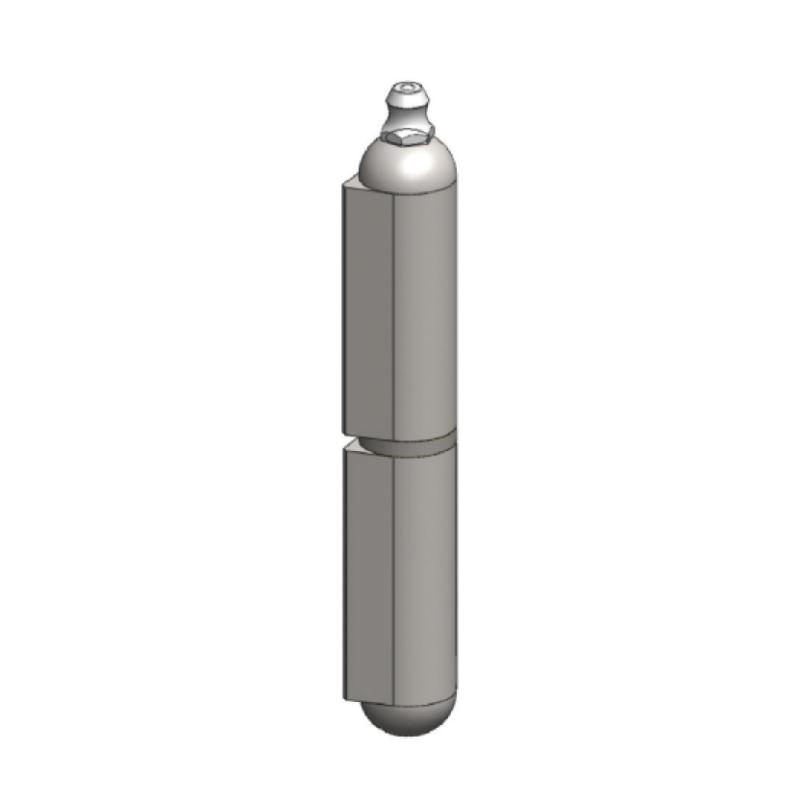

Weld-on hinge aluminium - 120mm stainless pin & washer

Name: WELD-ON HINGE ALUMINIUM - 120mm STAINLESS PIN & WASHER
Price: 24.70 NZD

Part No. 113978
Alt Part No's. 7004.90.120, WOHAL-120GN

120mm

Material

Aluminium

Finish

Satin

Features

Stainless Steel Washer

Stainless Steel Pin

Grease Nipple

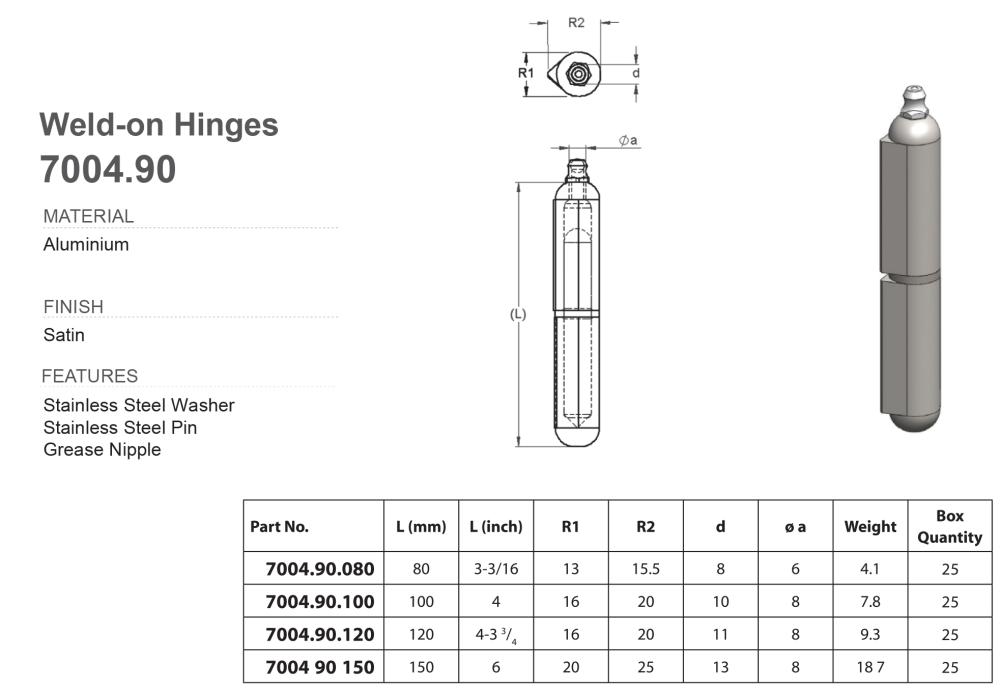

Length = 120mm

R1 = 16mm

R2 = 20mm

d = 11mm

Oa = 8mm

Weight = 9.3g
