Drop t lock - with bent tongue stainless steel

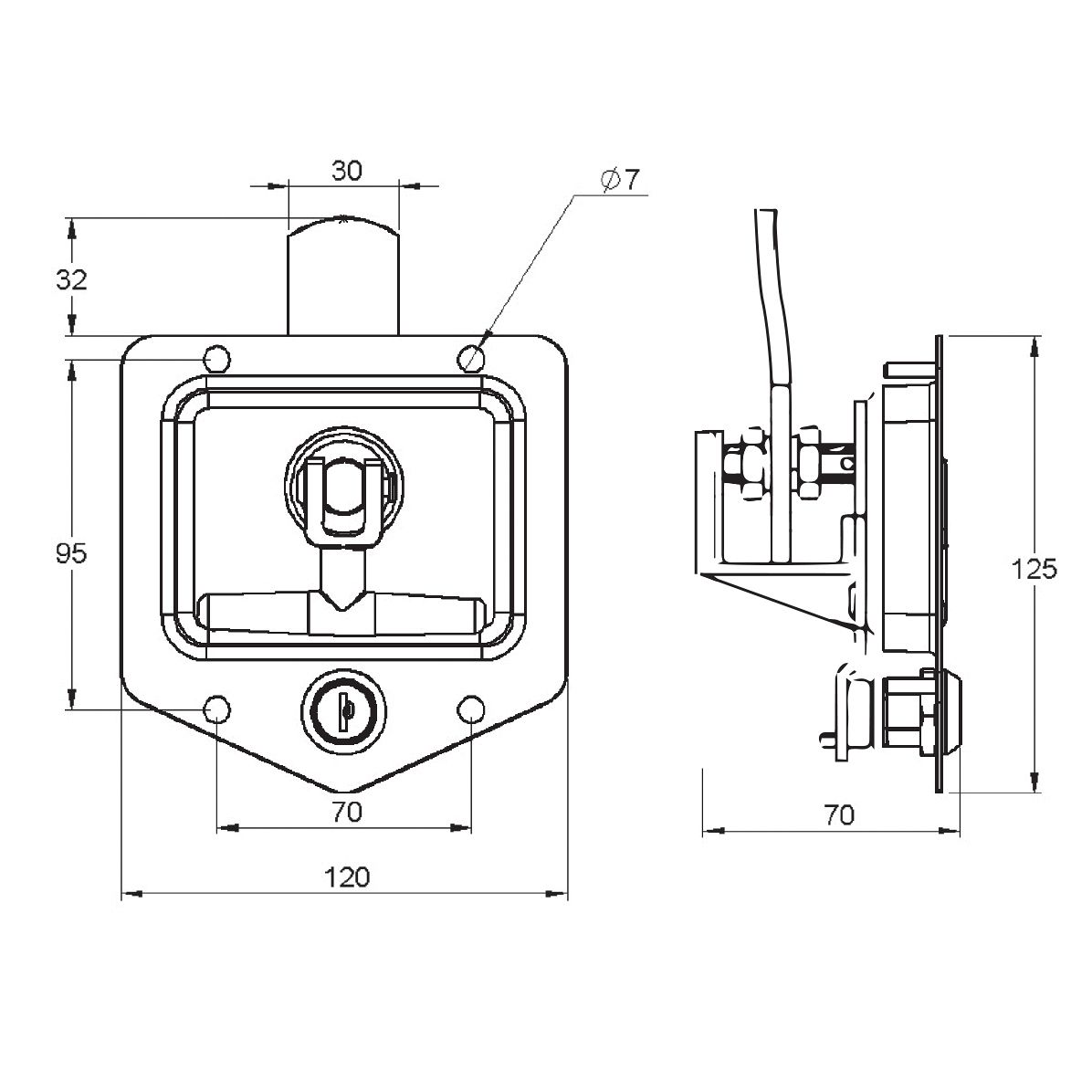

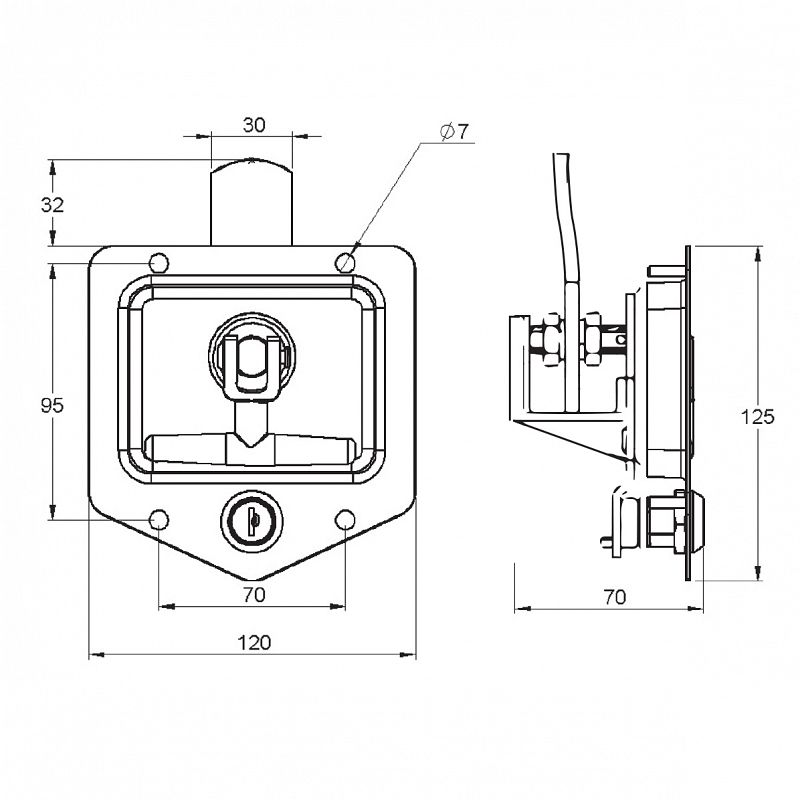

120x125x70mm

Material

9/01503 —– Stainless Steel

Finish

9/01503 – Polished

Features

9/01503 – LH K/A FS880

Polished die-cast ‘ hub’, and neoprene seal under stainless ‘cup’ washer for quality aesthetics,corrosion resistance and weatherproofing.

Lift handle to turn latch bar with 5mm cam-form, adjust through 12mm vertically.

Latch travels 90 degrees from centre (rest) position against stop, and is handed LH or RH (non-reversible).

Four holes in flanges at 7.5mm diameter. Latch bar is adjusted by 2 X M10 nuts.

Polished stainless steel with chrome handle and hub, or zinc plated mild steel. Optional black powder coat.

UES endeavours to maintain its reputation for high quality products. We have a substantial range of Drop T Lock’s which range in materials, finishes and features to ensure that you receive the ideal Drop T lock for your individual circumstance and need.
