Part No. 111631
Alt Part No's. 18611-01, 9/00424

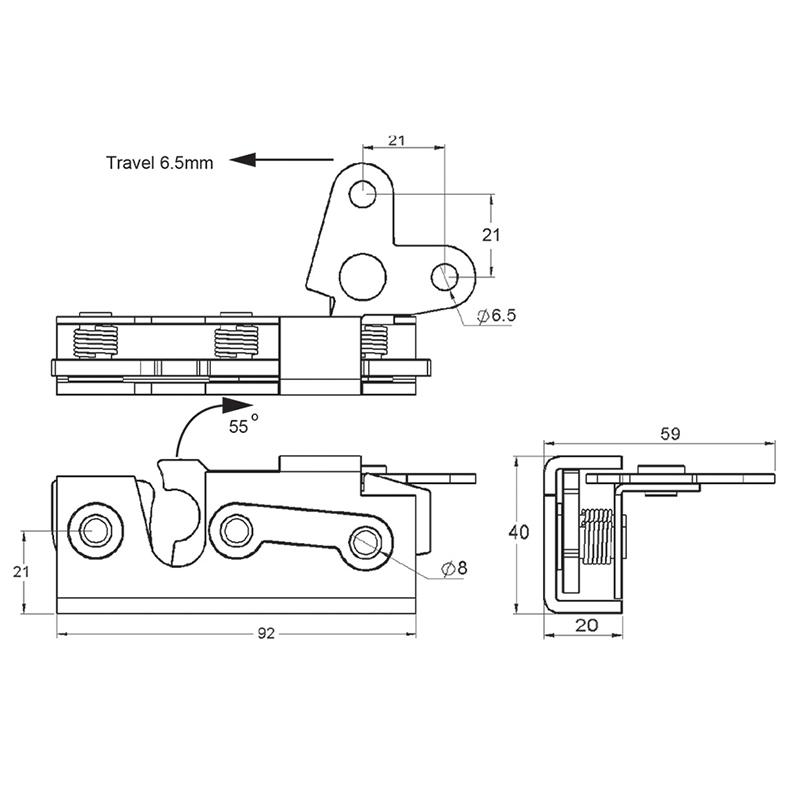

92x40x59mm nil stock
Material
Steel
Finish
ZP
Features

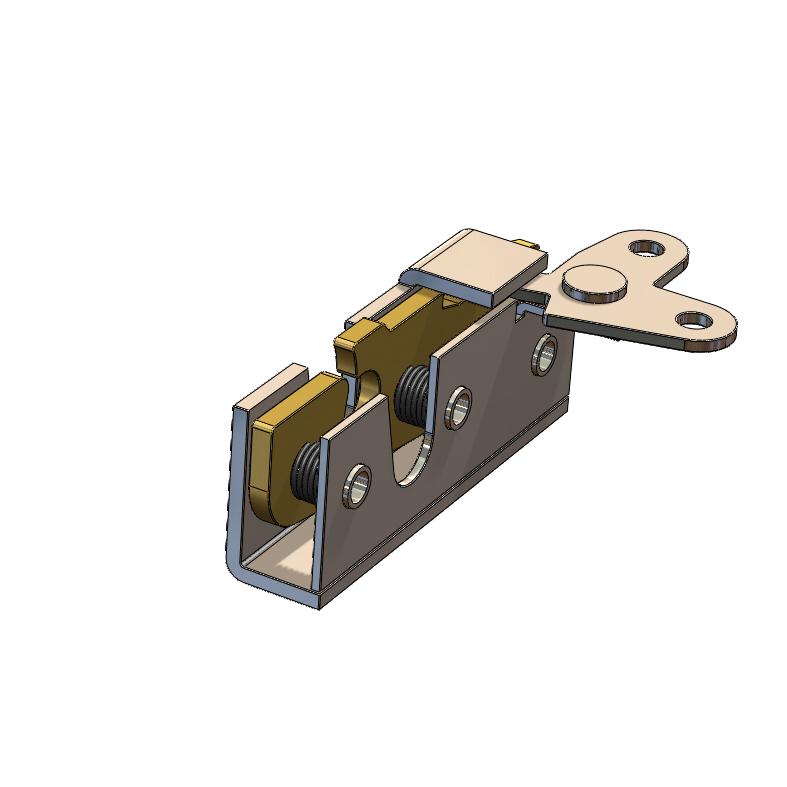

Slam-action against striker pin, both ‘ handle’ available.
Claw engages pin with 2-stage action, and is released by pull as shown on-lobe actuator arm. Clear zinc-plated through. Alternative actuator arms to special order.
Use with ‘ remote-action’ handles, turn buttons, wire and rod linkages, etc.
Anti-Burst Properties
When ring-tested, these latches can achieve values in excess of
8-9 KN* transverse load in fully latched condition.
However, vehicle builders are responsible for evaluating performance in their own particular application and for ensuring
that appropriate legislation is satisfied.
*SAE & ECE11 Specification
