3 : 1 air oil pump lit w/meter

Part No. 128652

Price: $1149.94

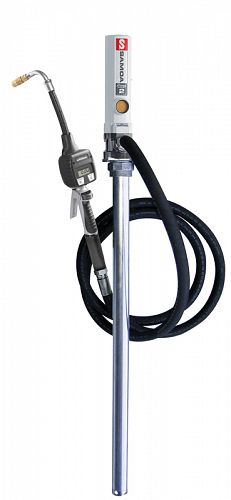

3:1 Air Op Oil Pump Kit w/ Meter

• Maximum pump free flow rate of 35 L/min
• Flow rates with hose and metered gun (365534) of up to 12 L/min
• One piece die-cast cylinder eliminates leaks & simplifies repairs
• Maximum fluid outlet pressure of 420psi
• Air pressure operating range from 20psi to 140psi
• Air consumption 180 NL/min (6.4 cfm)
• Air inlet: 1/4"BSP (f)
• Fluid outlet: 1/2 "BSP (f)
• Noise level: 80 dB
